Foam Proportioner, FOAMATE HP, Class A, 20 GPM

$1,968.19
Weight: 6.500 lbs
31.032.0
+ −

The Trident Foamate™ HP is a Class A foam proportioner engineered for ultra high-pressure firefighting systems. Designed to meet NFPA accuracy standards, this product features a complete metering valve and eductor assembly to ensure precise foam injection rates. It offers simple operation with selectable foam percentage settings while maintaining consistent water flow.

Product Features

  • Type: Through-The-Pump Foam Proportioner
  • Compatibility:
    • Class A Foam Concentrates
    • Ultra High Pressure Firefighting Systems
  • Water Flow Calibration: Factory calibrated for 20 GPM [76 LPM]
  • Standards Compliance: Conforms to NFPA Standards
  • Construction Materials:
    • Mil-Spec Hard Coat Aluminum
    • Stainless Steel
  • Mounting Options: Panel or Bracket Mounting
  • Flush Capability: Available in 0% (OFF) position

Foam Performance Numbers

  • Water Flow Rate: 20 GPM [76 LPM]
  • Selectable Foam Percentages:
    • 0% (OFF/Flush)
    • 0.5%
    • 1.0%
    • 2.0%
    • 3.0%
    • 6.0%

Applications

The Foamate™ HP is ideal for firefighting operations requiring precise foam proportioning in ultra high-pressure systems, ensuring effective fire suppression with Class A foam concentrates.

Warrany

5-Years

Trident Foamate HP Video

Sales Sheet (Foamate_HP_Sales_Sheet_FINAL.pdf, 548 Kb) [Download]

Install & Operation Guide (FoamateHP_OP_INS_v7.pdf, 773 Kb) [Download]

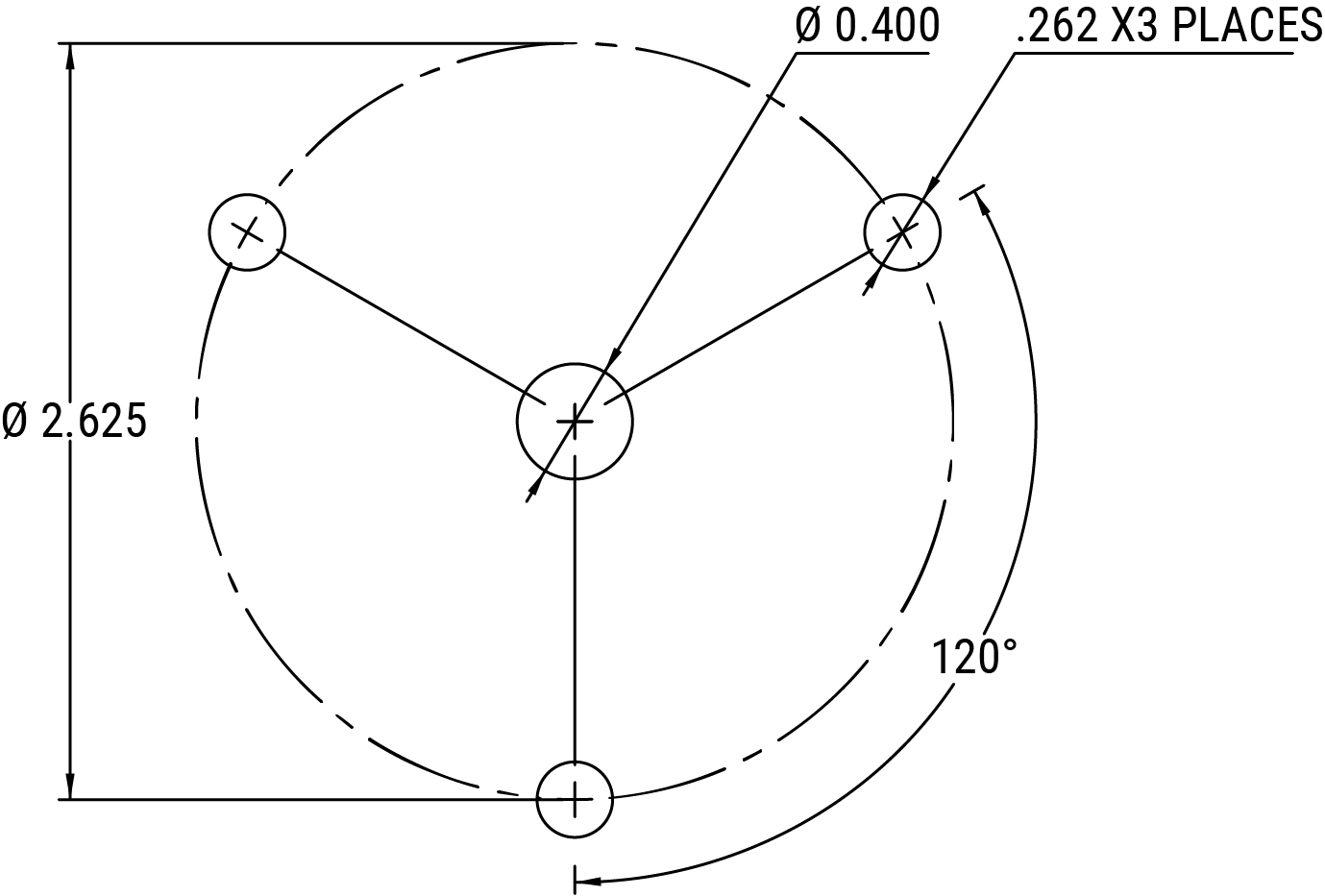

Metering Valve Hole Pattern (FOAMATE_HP_PANEL_CUTOUT.png, 54 Kb) [Download]

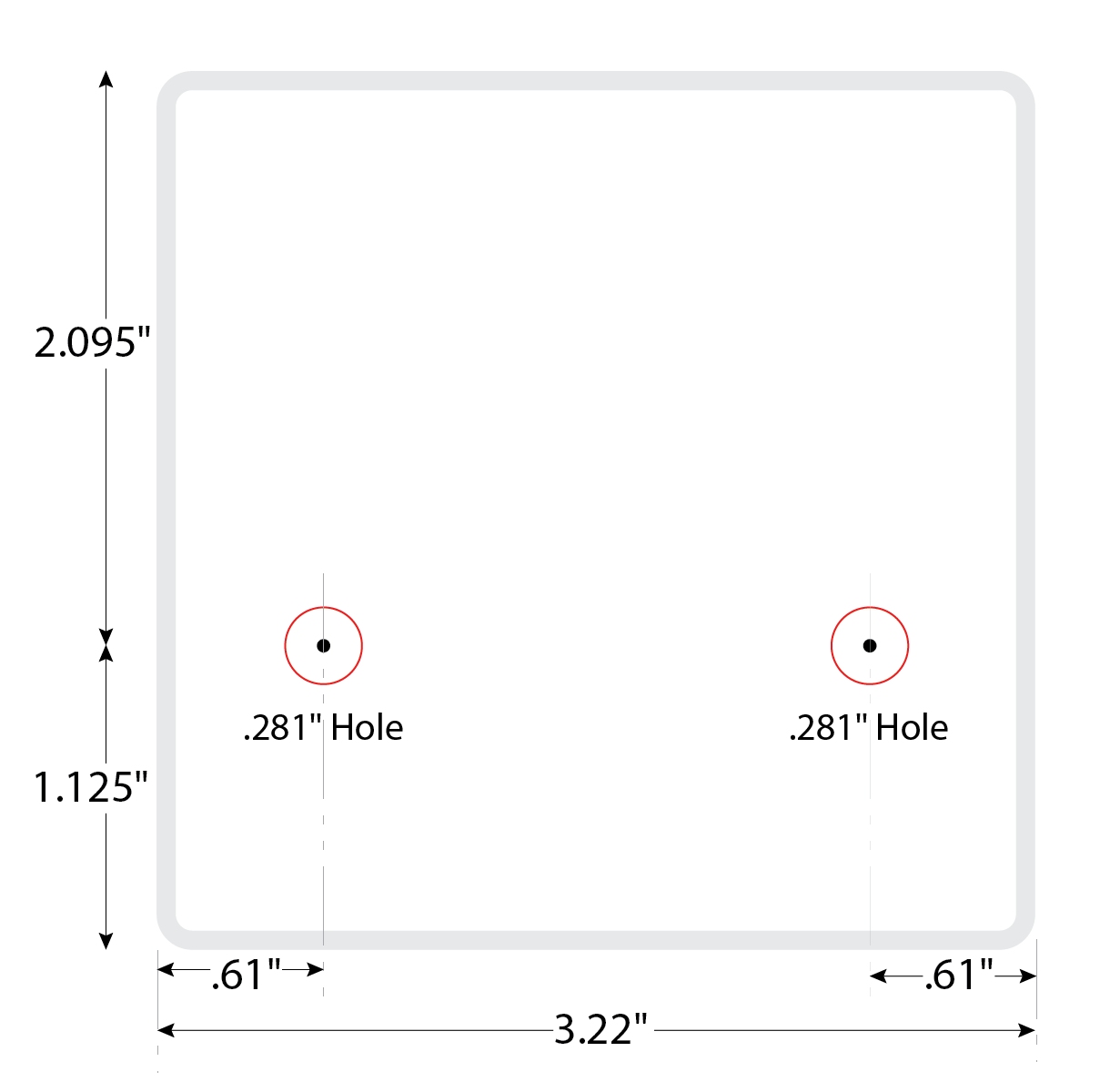

Instruction Bezel Hole Pattern (Instruction_Bezel_Cutout-01.png, 29 Kb) [Download]

Metering Valve CAD (30.116.0__METERING_VALVE,_20_GPM,_FOAMATE_HP.STEP, 6,362 Kb) [Download]

Eductor Assembly CAD (31.031.0__EDUCTOR_ASSEMBLY,_20_GPM,_FOAMATE_HP.STEP, 2,867 Kb) [Download]
