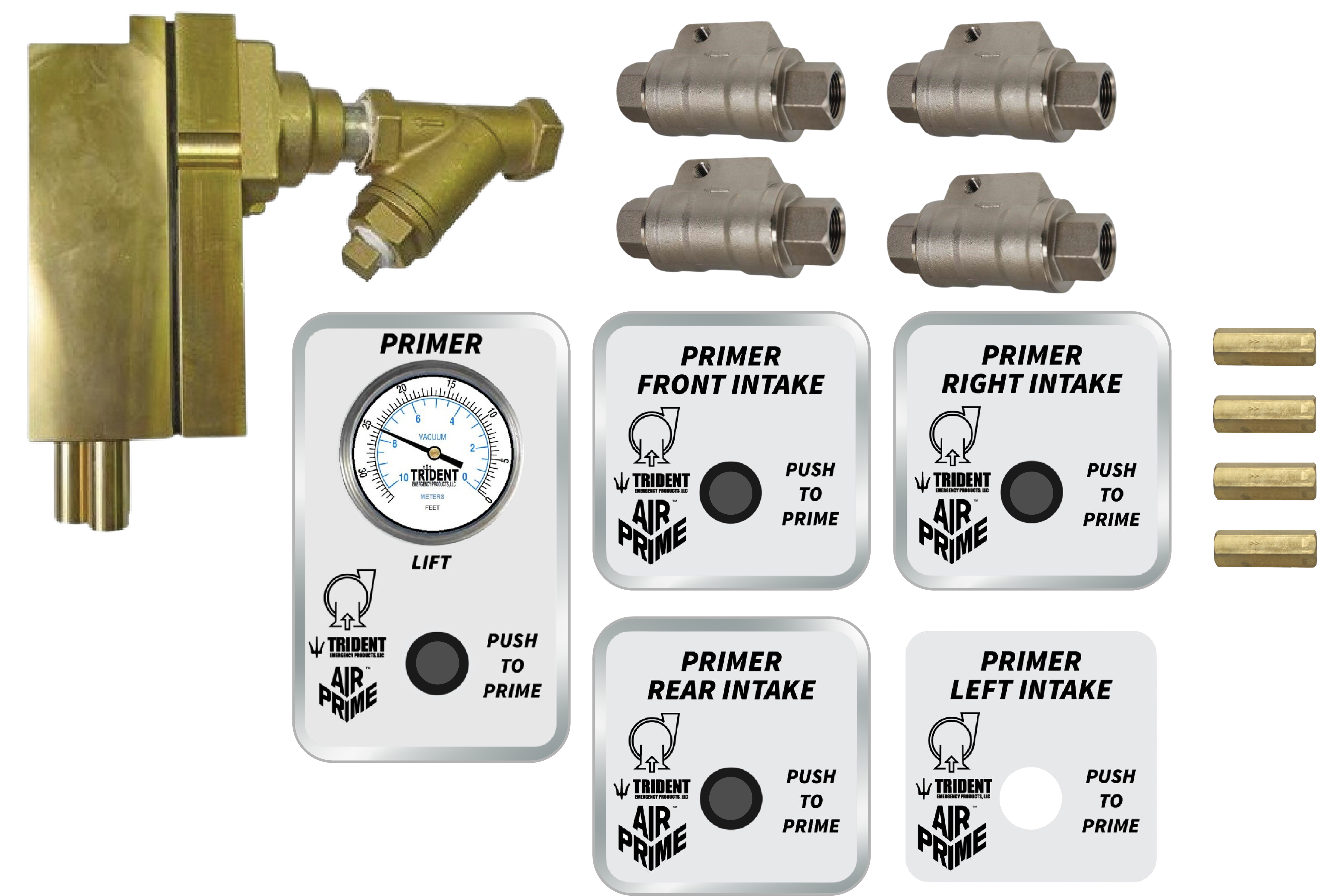

Manual AirPrime 4-Location 3 Barrel w/Gauge

Features and Benefits:

• Manual Push Button Control with lift gauge
• The operating noise level of the primer will not exceed 75 db
• The maximum electrical current draw will not exceed 0.5 amps during operation
• Corrosion Resistant Brass and Stainless-Steel Construction
• NFPA Compliant
• Lightweight and Small Mounting Space
• Self-Draining
• No vanes, electric motors, lubrication, belt drives, or clutch assemblies are used in the design of the air primer system
• Main pump plus 3 remote locations
• 0.75” FNPT connection

Air Requirements:

• Three (3) Barrel = 15.6 CFM

All Air Primer installations require a pressure protection valve. Click here to order.
