Trident Emergency Products, LLC
Trident Emergency Products, LLC
Phone: 215-293-0700  Fax: 215-293-0701   Or, click to contact us by email

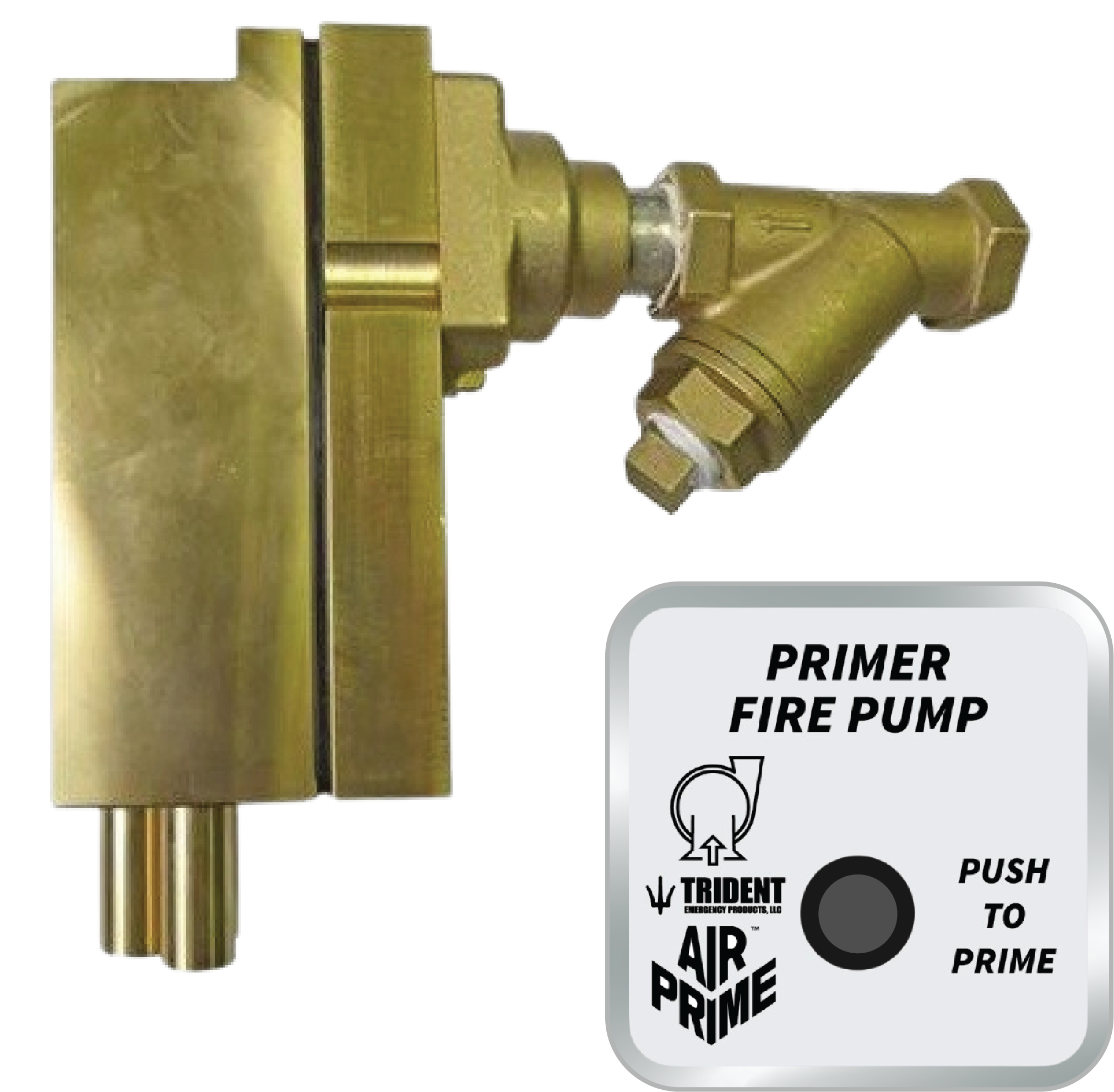

Manual AirPrime™ 3 Barrel

$1,654.44
Weight: 10.900 lbs
31.001.7
+ −

Features and Benefits:

  • Manual Push Button Control
  • The operating noise level of the primer will not exceed 75 db
  • The maximum electrical current draw will not exceed 0.5 amps during operation
  • Corrosion Resistant Brass and Stainless-Steel Construction
  • NFPA Compliant
  • Lightweight and Small Mounting Space
  • Self-Draining
  • No vanes, electric motors, lubrication, belt drives, or clutch assemblies are used in the design of the air primer system
  • Single priming location
  • 0.75” FNPT connection



Air Requirements:

  • Three (3) Barrel = 15.6 CFM



All Air Primer installations require a pressure protection valve. Click here to order.

AirPrime™ Operation and Installation Manual (AirPrime_Operation_and_Installation_Manual.pdf, 2,660 Kb) [Download]

PDF drawing of 31.001.7 (31.001.7__AIR-PRIME_-_3_BBL_-_.75_NPT005.pdf, 47 Kb) [Download]

DXF drawing of 31.001.7 (31.001.7__AIR-PRIME_-_3_BBL_-_.75_NPT005.dxf, 358 Kb) [Download]

Preferred Product Specifications (_31.001.7_-_Preferred_Product_Specifications.docx, 28 Kb) [Download]

AirPrime™ Control Panel Cutouts (AirPrime™_Control_Panel_Cutouts.dxf, 146 Kb) [Download]

AirPrime™ Control Panel Cutouts (AirPrime™_Control_Panel_Cutouts.pdf, 1,284 Kb) [Download]
