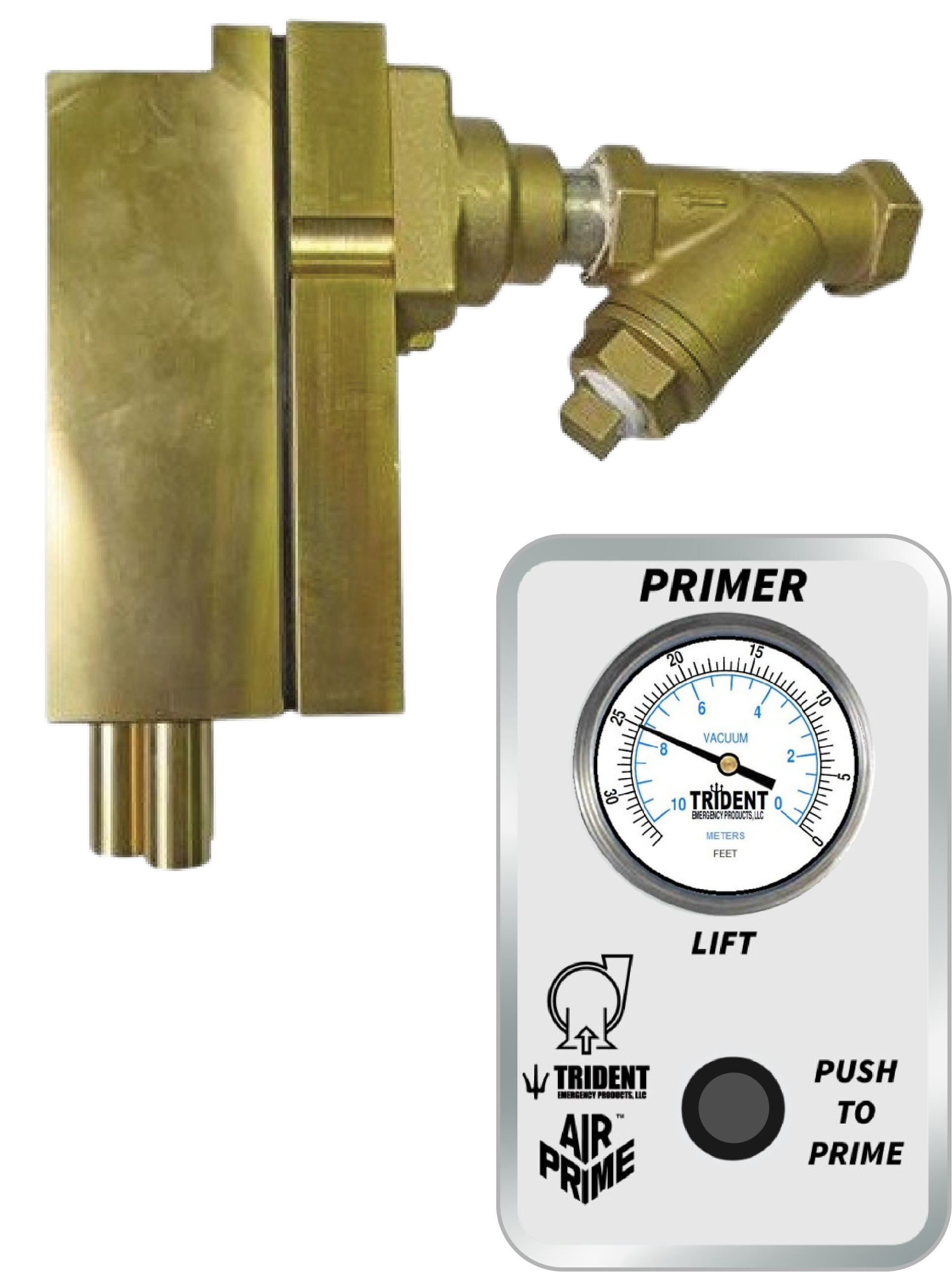

Manual AirPrime 2 Barrel w/Gauge

Weight: 11.900 lbs

Features and Benefits:

  • Manual Push Button Control with lift gauge
  • The operating noise level of the primer will not exceed 75 db
  • The maximum electrical current draw will not exceed 0.5 amps during operation
  • Corrosion Resistant Brass and Stainless-Steel Construction
  • NFPA Compliant
  • Lightweight and Small Mounting Space
  • Self-Draining
  • No vanes, electric motors, lubrication, belt drives, or clutch assemblies are used in the design of the air primer system
  • Single priming location
  • 0.75” FNPT connection


Air Requirements:

  • Two (2) Barrel = 13.2 CFM


All Air Primer installations require a pressure protection valve. Click here to order.


AirPrime Operation & Installation Guide (All AirPrime Models) (AirPrime_Install-Ops_Guide_Updated_7-2020.pdf, 2,583 Kb) [Download]

Preferred Product Specifications (_31.013.7_-_Preferred_Product_Specifications.docx, 28 Kb) [Download]
