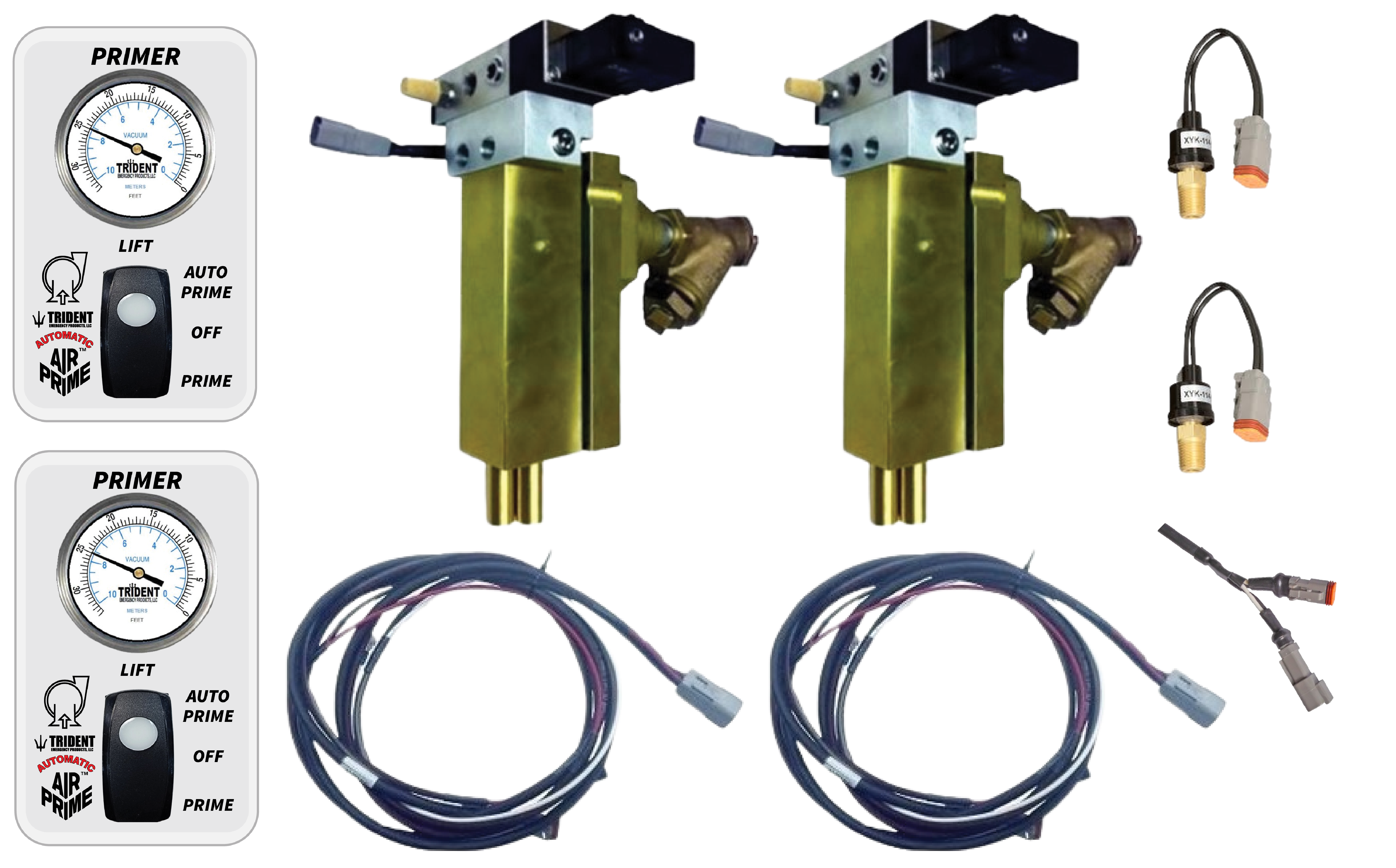

Industrial AirPrime, Automatic with Gauge, Dual Unit, Up to 3000 GPM Pump [11,000 LPM]

$3,969.07
Weight: 28.000 lbs
31.013.43
+

Air Primer — Features & Benefits

  • Noise Level: Super Quiet
  • Compact Design Requires Minimal Mounting Space
  • Power: Air Operated from Engine Air Compressor
  • Self-Draining
  • Corrosion Resistant Brass Construction
  • No Moving Parts
  • NFPA Compliant
  • Oil-Less Design: Environmentally Safe
  • 12 Volt Panel Mounted Rocker Switch with Integral Lift Gauge that Indicates the Vertical Elevation of Water in Feet/Meters During Priming Operation
  • For Use With Up To 3,000 GPM (11,000 LPM) Fire Pumps



Air Requirements

  • Dual (2) Barrel System = 14 CFM (20-CFM minimum compressor rating @ 1250-RPM)



All Non-Trailer Installations require a pressure protection valve. Click here to order.

AirPrime Operation & Installation Guide (All AirPrime Models) (AirPrime_Install-Ops_Guide_Updated_7-2020.pdf, 2,583 Kb) [Download]

Preferred Product Specifications (_31.013.43_-_Preferred_Product_Specifications.docx, 28 Kb) [Download]
