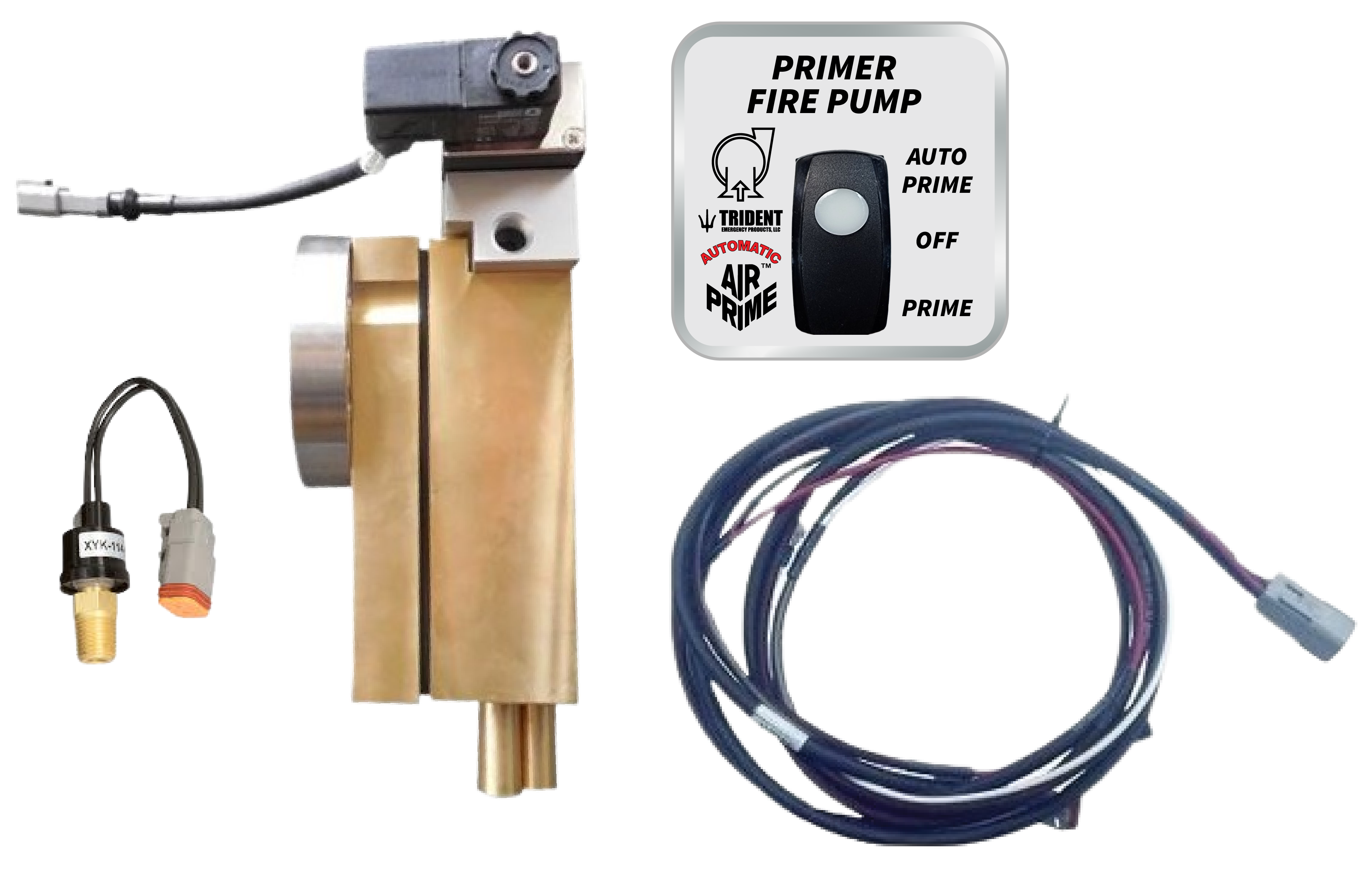

Auto AirPrime 3 Barrel, Hale Mount - 24 Volt

Weight: 13.000 lbs

Features and Benefits:

  • 24V Automatic Electric Panel Switch
  • The operating noise level of the primer will not exceed 75 db
  • The maximum electrical current draw will not exceed 0.5 amps during operation
  • Corrosion Resistant Brass and Stainless-Steel Construction
  • NFPA Compliant
  • Lightweight and Small Mounting Space
  • Self-Draining
  • No vanes, electric motors, lubrication, belt drives, or clutch assemblies are used in the design of the air primer system
  • Single priming location
  • Direct mount for Hale Qmax/Qtwo pumps


Air Requirements:

  • Three (3) Barrel = 15.6 CFM


All installations are recommended to use a pressure protection valve. Click here to order.


AirPrime Operation & Installation Guide (All AirPrime Models) (AirPrime_Install-Ops_Guide_Updated_7-2020.pdf, 2,583 Kb) [Download]

Preferred Product Specifications (_31.001.1_-_Preferred_Product_Specifications.docx, 29 Kb) [Download]
