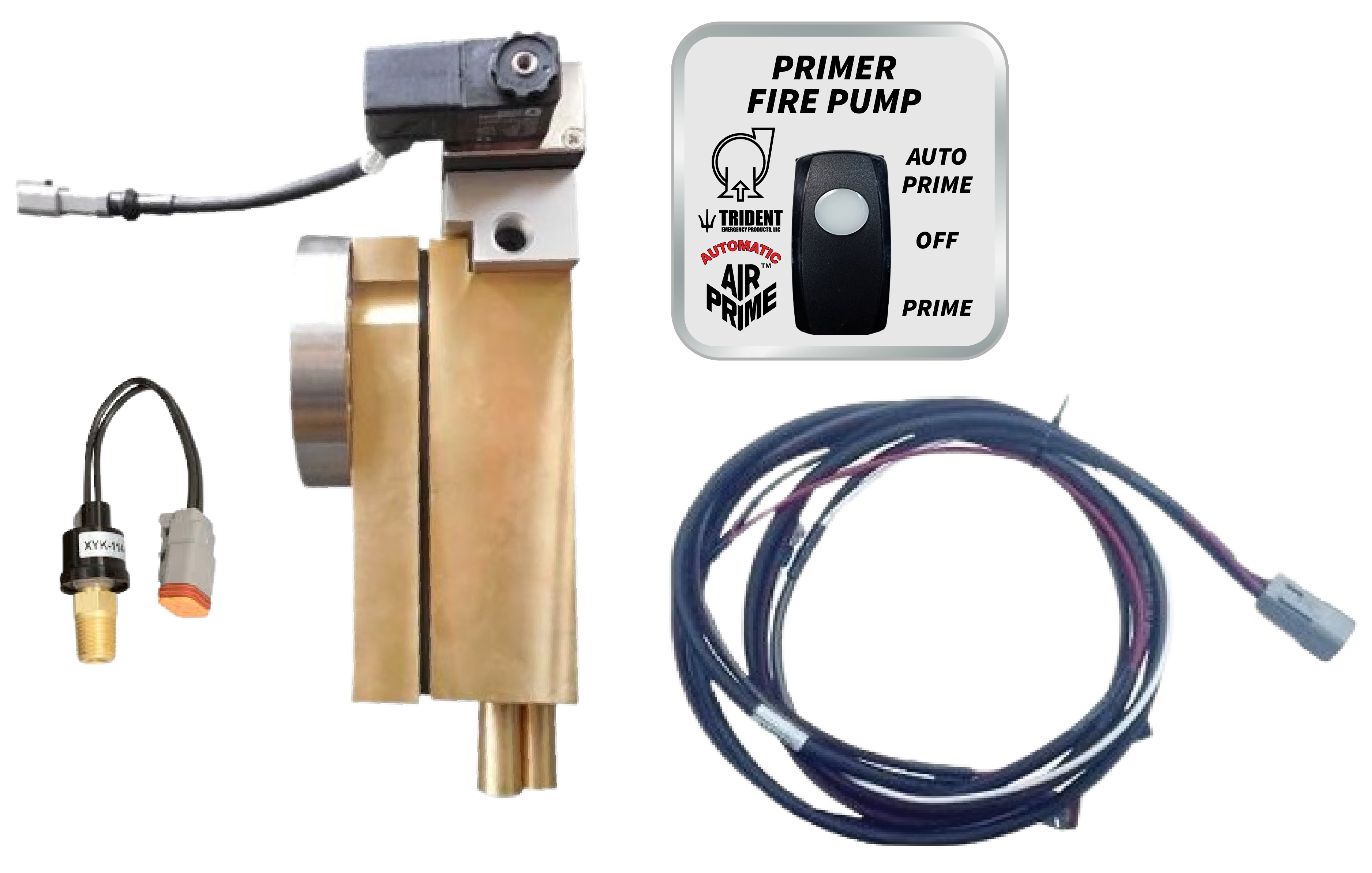

Auto AirPrime 3 Barrel Hale Mount - 12 Volt

$2,195.32
Weight: 13.000 lbs
31.001.0
+

Features and Benefits:

  • 12V Automatic Electric Panel Switch
  • The operating noise level of the primer will not exceed 75 db
  • The maximum electrical current draw will not exceed 0.5 amps during operation
  • Corrosion Resistant Brass and Stainless-Steel Construction
  • NFPA Compliant
  • Lightweight and Small Mounting Space
  • Self-Draining
  • No vanes, electric motors, lubrication, belt drives, or clutch assemblies are used in the design of the air primer system
  • Single priming location
  • Direct mount for Hale Qmax/Qtwo pumps



Air Requirements:

  • Three (3) Barrel = 15.6 CFM



All installations are recommended to use a pressure protection valve. Click here to order.

$178.17

AirPrime Operation and Installation Manual (AirPrime_Operation_and_Installation_Manual.pdf, 2,660 Kb) [Download]

Preferred Product Specifications (_31.001.0_-_Preferred_Product_Specifications.docx, 28 Kb) [Download]
