Foamate logoClass A Around the Pump Foam Proportioners

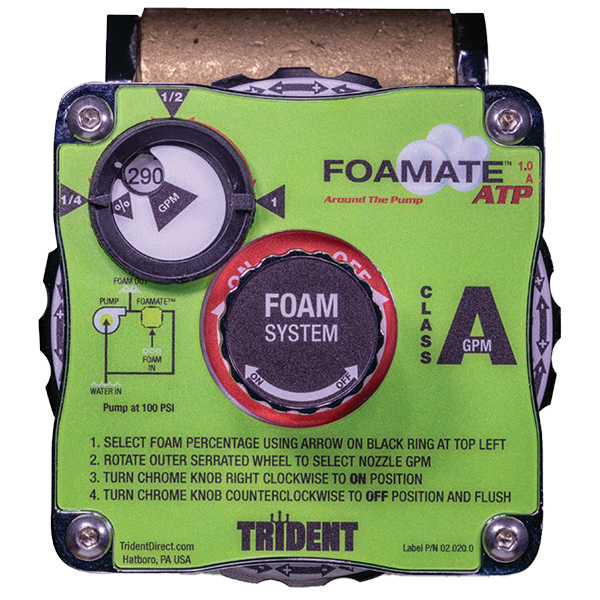

FOAMATE Foam System Class A Front View

Trident "FOAMATE" Advantages

  • All Brass Body Construction and Connections
  • Maximum Pressure 600 PSI
  • Flow Range: up to 400 GPM or 1500 LPM
  • Simple Operation and Training
  • Perfect for Retro-Fit Installation on Existing Units
  • Quick to Install – Under One Hour
  • GPM and LPM versions



FOAMATE Construction

  • Brass metering valve with EPDM rubber replaceable foam compatible seals
  • Integral check valve to prevent "backflow" of foam into the water supply
  • Compact control panel, 4" high x 4" wide x 4" deep
  • Valve body and metering valve mounted behind panel (when panel mounted)
  • Chrome plated control panel, with integral polycarbonate label for operating instructions and foam diagram



Choose Class A Foam ATP Proportioner Features

Flow & Pickup Unit
31.008.0
$795.41

Wildland, Foam Proportioner, Around The Pump, Up to 400GPM, Class A, Brass

+

31.008.1
$795.41

Wildland, Foam Proportioner, Around The Pump, Up to 1500LPM, Class A, Brass

+

10.010.0
$251.99
Wildland, Foam Systems, Foam System and Accessories, Pail to FOAMATE, Delivery Tube, Brass
+

Download the FOAMATE 1.0 Install Guide

Download the FOAMATE 2.1 Manual

Download the FOAMATE Flyer
